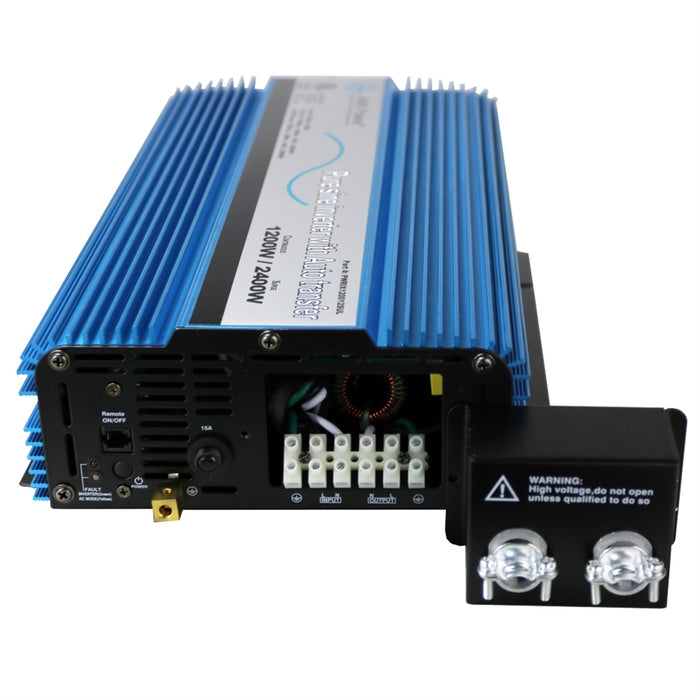

AIMS Power 1200 Pure Sine Inverter with Transfer Switch - ETL Certified Conforms to UL458 Standards Hardwire Only

1200 Pure Sine Inverter with Transfer Switch - ETL Certified to conform to UL 458 standards. This inverter is ideal for built-in RV refrigerators or other appliances. Easy to install. The inverter will switch between shore power and battery power without any extra wires. Many RV'ers and mobile businesses like to use residential size refrigerators and this is the perfect solution. Smaller microwaves and coffee pots are also common uses for this inverter.

One of the standards of UL 458 is that all AC inverters pass a High Voltage Dielectric Withstand Test, commonly called the Hi-Pot Test. The voltage applied to the control is usually equal to 1,000 volts, plus two times the line voltage rating of the inverter. Therefore, the standard hi-pot voltage for 115 VAC inverter is 1,250 VAC. For 230 VAC or dual voltage inverters, the hi-pot voltage is 1,500 VAC. This Aims power inverter is hi-pot tested before it leaves the factory, with a UL Certified hi-pot tested, set to the voltages shown above.

• Pure sine
• Conforms to UL458
• Hard wire direct connect terminal block
• 1200 watt continuous power
• 2400 watt surge
• Bypass when the inverter is off or on
• Over voltage shutdown
• Under voltage shutdown
• Intelligent cooling fan
• Automatic transfer switch 10 amps
• Conformal coated for marine applications
• Remote switch available
• Less than 20msec typical transfer time
• 2 year warranty

• 1200 watts
• 2400 watt surge
• Built in transfer switch 10 amp transfer
• DC input voltage 10-16V
• AC input voltage 120VAC +/-10%
• Output voltage 120VAC, 60HZ
• Efficiency 86-90%
• Over voltage shutdown 16VDC +/- .5V
• Under voltage shutdown 10VDC +/- .5V
• Under voltage alarm 10.3VDC +/- .3V
• Over temp protection 150 degrees F +/- 5 degrees F
• Thermal fan
• Pure Sine output
• No load current 1.2A
• Direct connect terminal block
• L x W x H: 17.25 x 9.31 x 3.8
• Unit - 10.2 lbs
• Boxed - 13 lbs

Optional Remote
Part # REMOTEHF Optional Remote on/off switch (new flush mount design)
Dip switches to black out the lights if preferred.
L x W x H: 3 x 2.06 x 1
