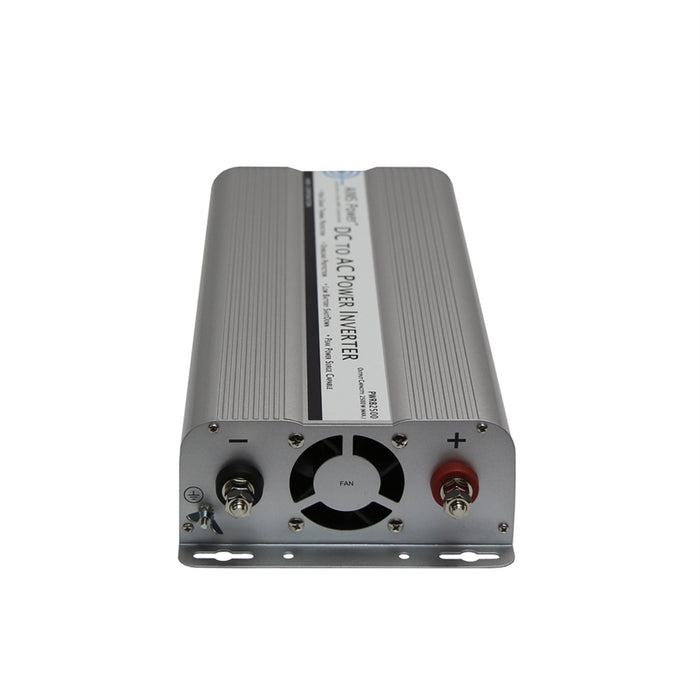

AIMS Power 2500 Watt Power Inverter 12 Volt

$229.00
SKU PWRB2500
AIMS Power 2500 Watt Power Inverter 12 Volt

This AIMS "no-frills" economical 2500 watt 12 volt power inverter converts DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to run practically any household appliances or tools. This unit produces a modified sine wave, which is capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, cabin, boat, or anywhere that doesn't have city power.

Features:
  • 2500W max continuous power
  • Modified sine wave
  • Over Temperature protection
  • Over Load protection
  • Dual ac receptacle that can be split with a separate spliter if extra outlets are needed
  • On/off switch
  • Convenient always on dual cooling fan operation
  • Internally fuse protected
  • ac output short circuit protection
  • Auto reset on most fault conditions
  • Battery terminals are designed to conduct more current therefore requiring only one set of cables.
  • Aluminum case for optimal cooling
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor
Specifications:
  • Continuous output power: 2500 Watts. Use 200 amp inline fuse.
  • Surge power capability (peak power): 5000 Watts
  • dc input / operating voltage: 10 to 15 Volts
  • Output voltage: 120 Volts ac +/- 10%
  • Output wave form: modified sine wave with phase correction
  • Output frequency: 60 Hz +/- 1 Hz
  • Battery low voltage alarm: 10.5 +/- 0.5 Volts
  • Battery low voltage shutdown: 10.0 +/- 0.5 Volts
  • AC amps: 21
  • DC amps: 208
  • No load current: 2.5 Amps with switch in the on position (because fans are always on) See PWRINV2500 if you don't want always on fans.
  • Full load efficiency: 90%
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: -15 degrees Celsius
  • Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
  • AC Output Socket Type: dual Type 2 -3 prong
  • High input voltage protection: 15V-17V
  • Low input voltage shutdown: 10V
  • Internal fuse protection
  • Product size (L x W x H): 14.5”X 6.5”X 3.0”
  • Unit Weight: 6.1 lbs Boxed Weight: 8 lbs
  • UL maximum recommended per outlet 1500W
