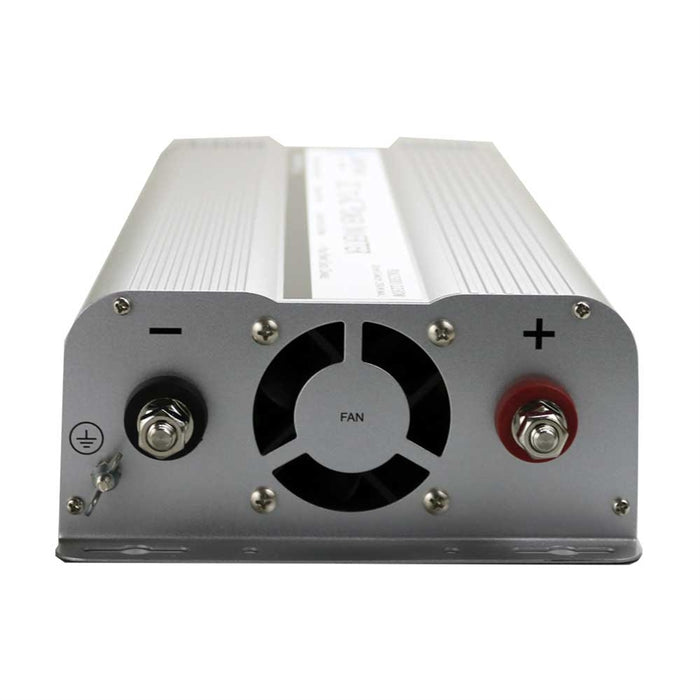

AIMS Power 2500 Watt Power Inverter UK Plug 230 Volt European 12 Volt

This 2500 watt 12 volt power inverter by AIMS Power converts DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to run practically any household appliances or tools. This is a European, UK model 230V. It will not work with US 120 volt equipment.

This unit produces a modified sine wave, which is capable of running most tools, pumps, motors and appliances. Use this product for off-grid back-up power at home, cabin, boat, or anywhere that doesn't have city power.

• 2500Watt max continuous power
• 12 Volt Power Inverter
• Modified sine wave
• Volt meter on front panel to monitor your battery voltage
• Amp meter on front panel to monitor your current use (rate at which battery is drained)
• Over Temperature LED indicator
• Over Load LED indicator
• UK Plugs type G 3 prong
• On/off switch
• Over Temperature protection
• Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
• Auto reset on most fault conditions
• Aluminum case for optimal cooling
• Pre-wired for remote on/off switch
• Pre-slotted mounting plate
• Instruction manual
• Free 1 year tech support
• 1 Year Warranty Parts and Labor

• Continuous output power: 2500 Watts
• Surge power capability (peak power): 5000 Watts
• dc input / operating voltage: 10.5 to 17 Volts
• Output voltage: 230 Volts ac +/- 10%
• Output wave form: modified sine wave with phase correction
• Output frequency: 50 Hz +/- 1 Hz
• Battery low voltage alarm: 10.5 +/- 0.5 Volts
• Battery low voltage shutdown: 10 +/- 0.5 Volts
• No load current: < 0.2 Amps
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• No load minimum operating temperature: -15 degrees Celsius
• Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
• UK Plug type G 3 prong
• High input voltage protection: 17 volts
• Low input voltage shutdown: 10 volts
• Internal fuse protection
• Product size (L x W x H): 14.5"X 6.5"X 3.0rdquo;
• Weight: unit 10 lbs boxed 12 lbs
