Voyager VOM74TQ 7" LCD Observation Monitor

by Jensen
Sold out

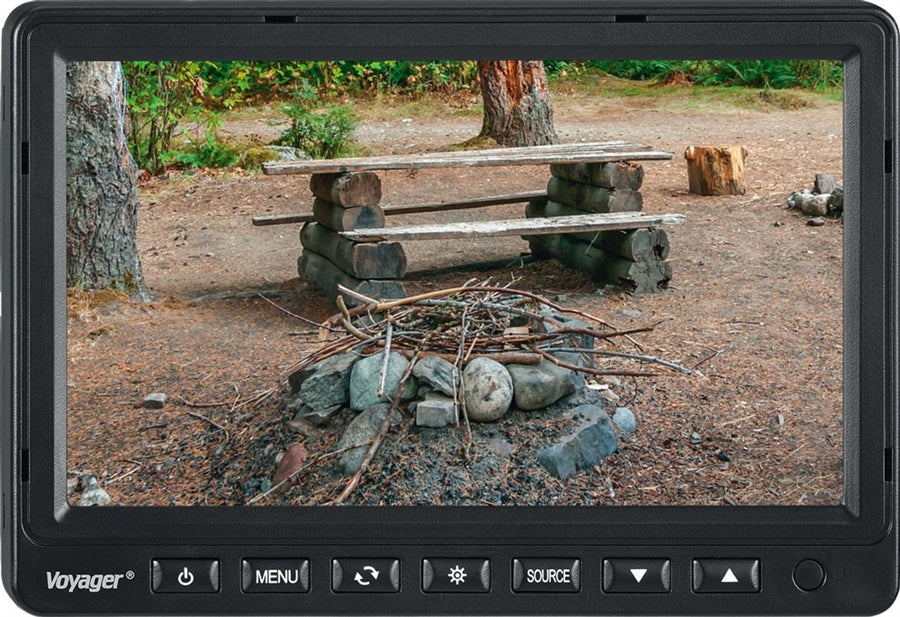

Voyager VOM74TQ 7" LCD Observation Monitor

The leading-edge features of the VOM74TQ monitor ensures users will be on the cusp of an ever-changing technological market. With the quad-view capabilities, drivers will have the advantage of monitoring several different views of the vehicle’s surroundings simultaneously. The unit also has DC triggers which activate specific cameras when a 12V trigger, such as the reverse gear, is initiated. The VOM74TQ’s capacitive touch panel allows the operator to zoom to full screen from a 4-camera view just by touching any one of the four pictures. The unit’s non-volatile memory saves the user’s picture and volume adjustment settings. Other high-end features of this monitor include an energy efficient white LED illumination with backlit controls, integrated audio speaker, and day/night brightness modes.

  • Capacitive touchscreen for easy control
  • Energy efficient white LED illumination
  • Back-lit controls
  • Integrated audio speaker
  • NTSC and PAL video signal compatible
  • Four camera inputs (only camera 3 supports audio)
  • Manual (pushbutton) or automatic (trigger) source selection
  • Turn-signal (pulsed DC) compatible trigger inputs
  • Auto power on (standby)
  • Day/Night brightness modes
  • On Screen Display (OSD) for AV source, picture adjustment and volume level
  • Non-volatile memory for picture and volume adjustment settings
  • Removable sun-visor included
  • Multiple mounting options (AMPS compatible)
  • e-Mark certified and RoHS compliant

  • Weight (Lbs): 1.43
  • Overall Dimensions: 7.0W x 4.7H x 1.1D
  • Diagonal Screen Size (Inches): 7
  • Aspect Ratio: 16:9
  • Resolution: 480 x 234
  • Brightness (cd/m2): 450 nit
  • Contrast Ratio: 400:1
  • Viewing Angles (V/H): 55, 65, 70, 70
  • Power System: 12VDC
  • Camera Inputs: 3
  • Screen Capabilities: No
  • Triggers: Five 12V
  • Slimline Profile: No
  • Built-in Speakers: Yes
  • Backlit Controls: Yes
  • Video Output Signal Format: NTSC/PAL
  • IR Repeater: No
  • Removable Sunvisor Included: Yes
  • e-Mark Certified: Yes
  • RoHS Compliant: Yes
