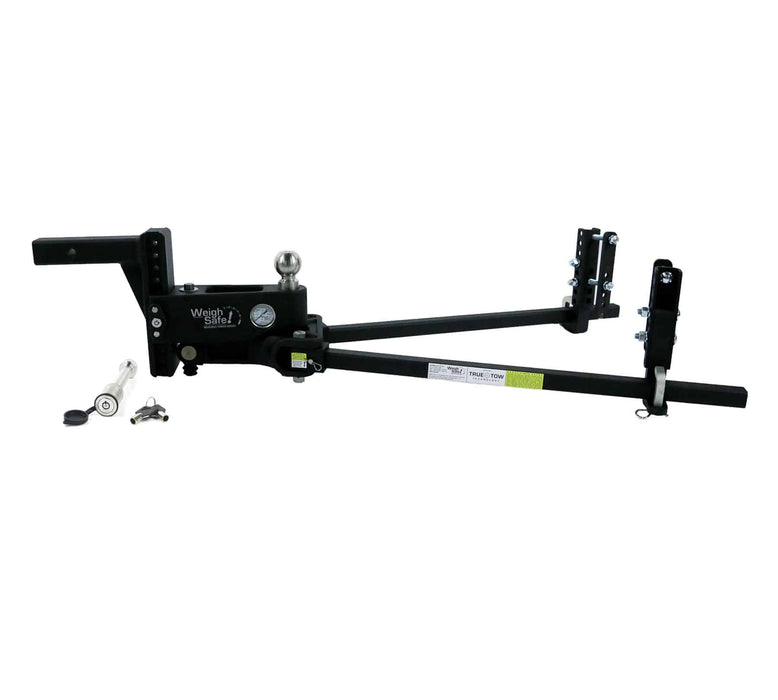

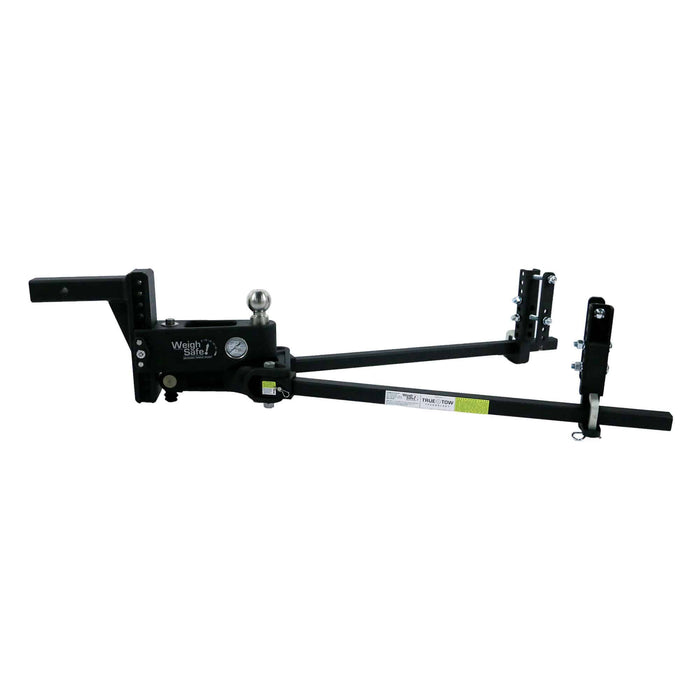

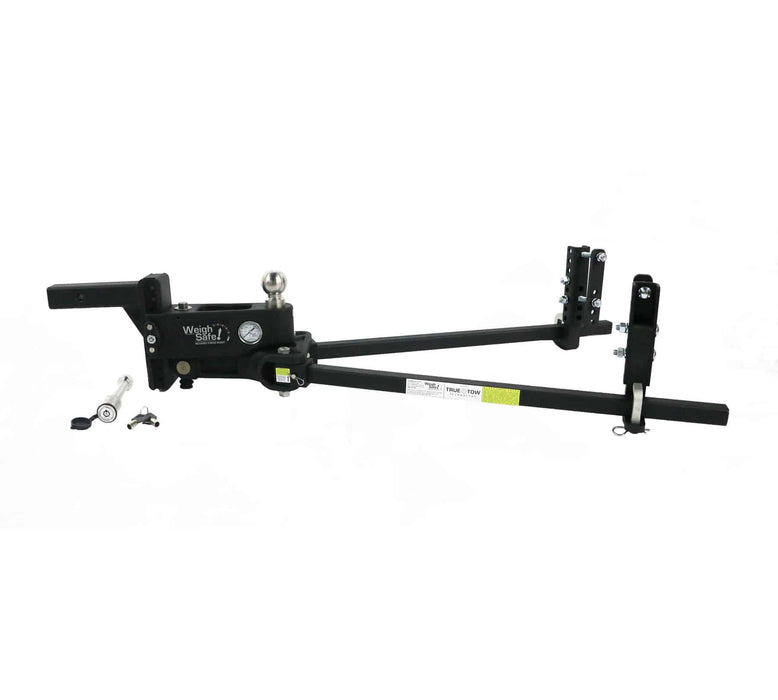

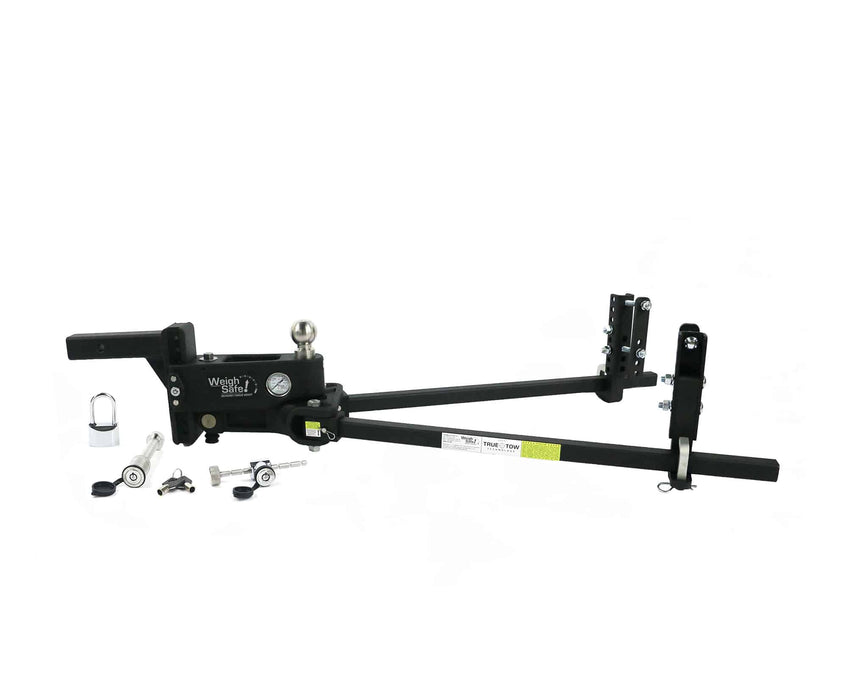

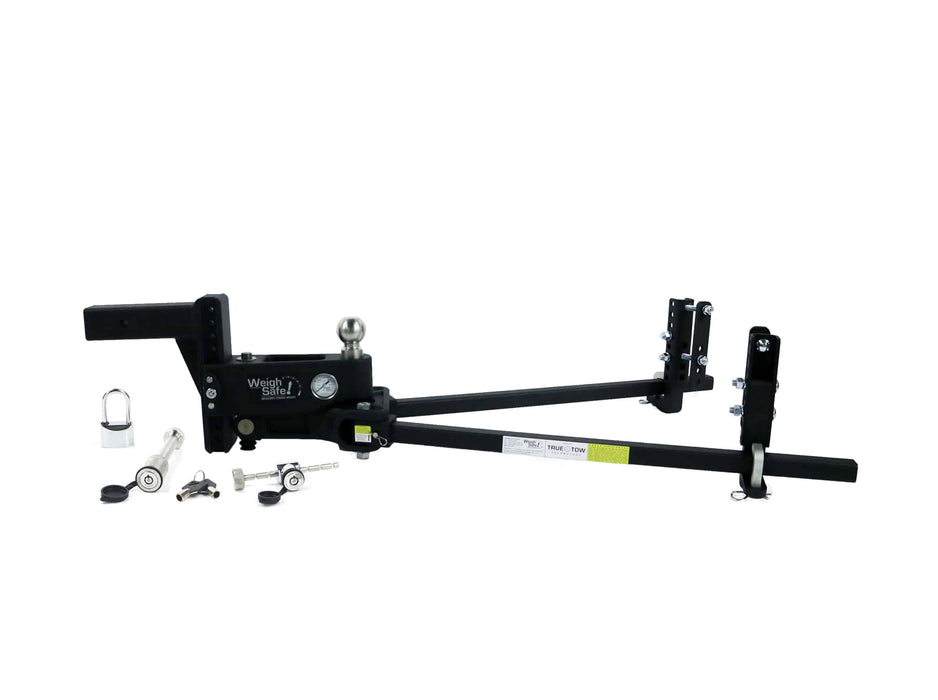

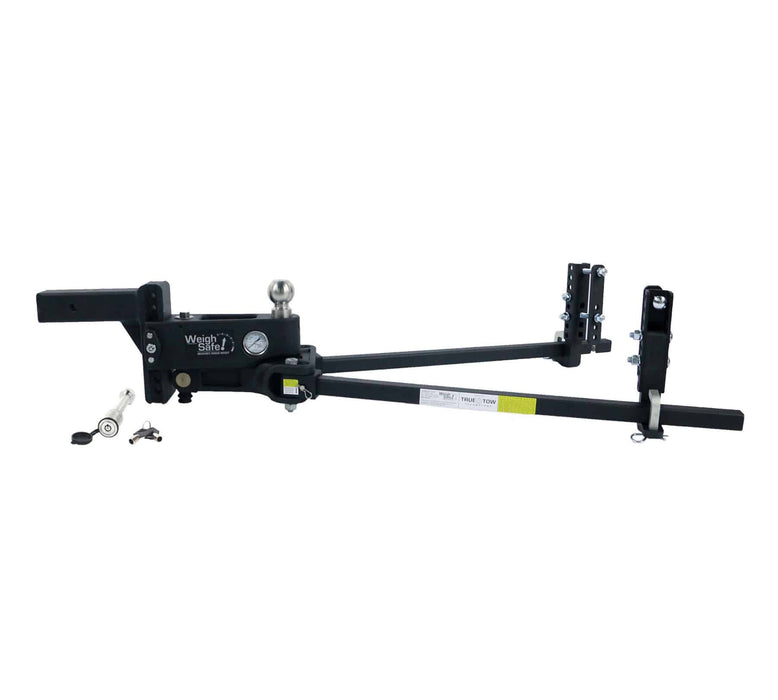

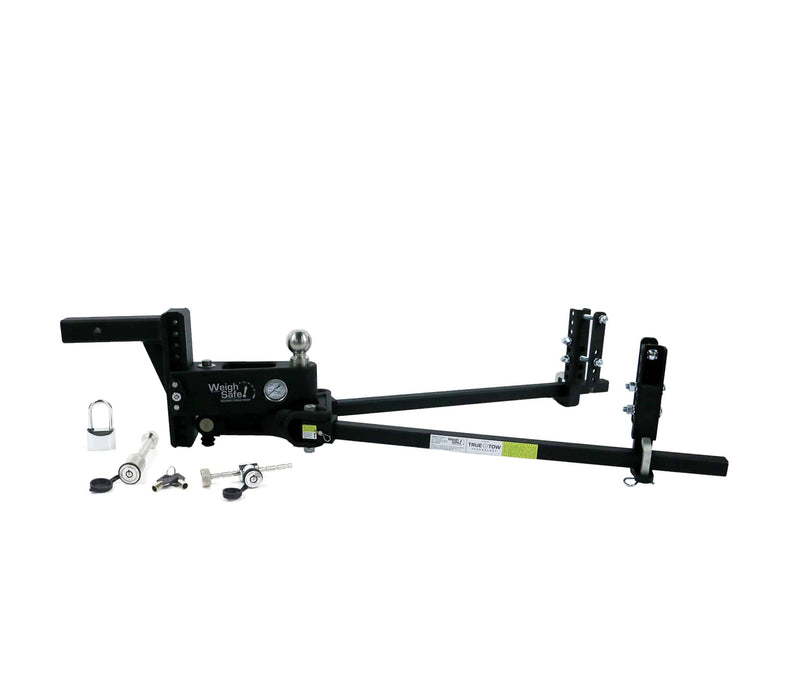

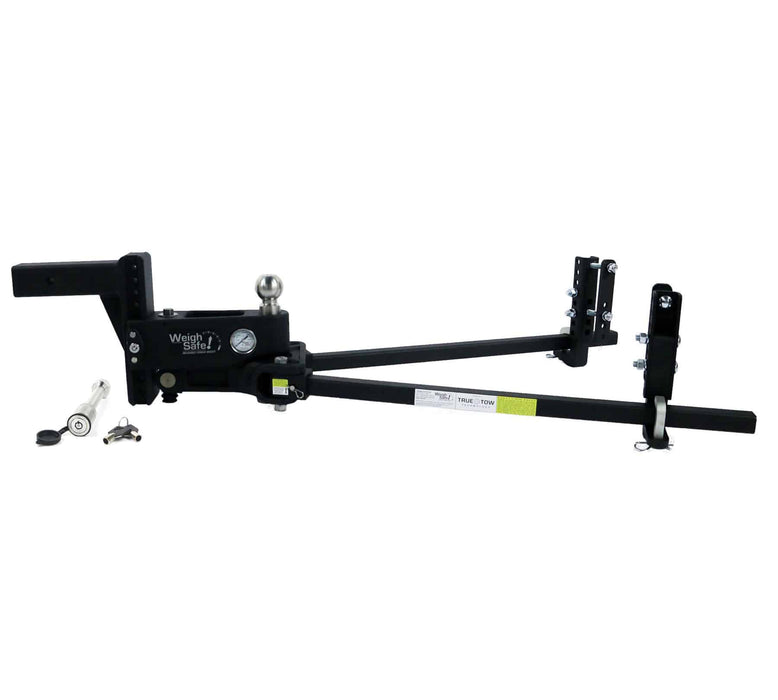

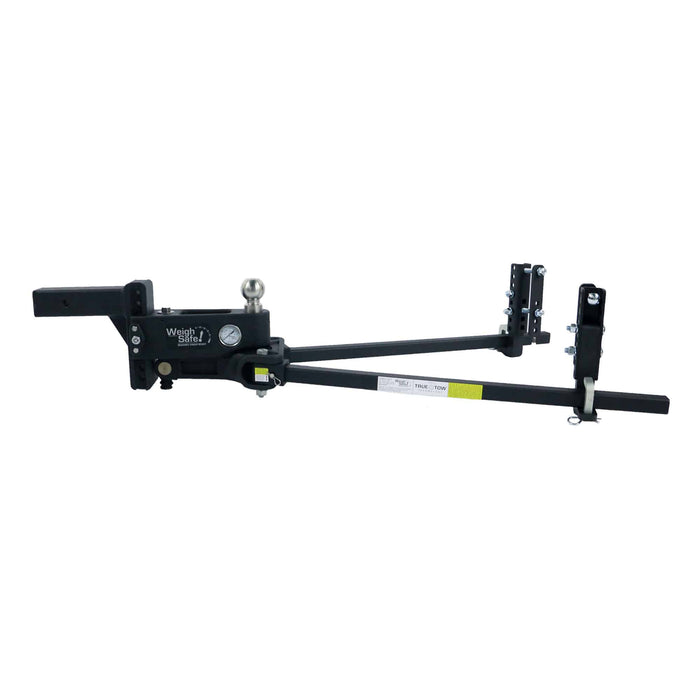

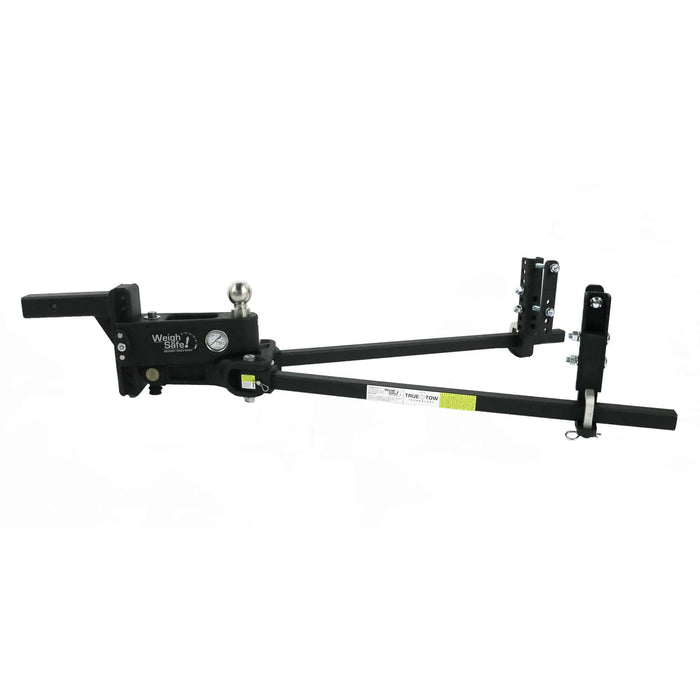

WEIGH SAFE DISTRIBUTION HITCHES-TRUE TOW HEAVYWEIGHT

$1,210.00
SKU WSWD8-2-KA
Drop Length
Shaft Size
Key Alike Locks

Introducing the first-ever weight distribution trailer hitch that can truly distribute your load with ease. With our continued efforts in revolutionizing the towing industry and offering our customers a Towing Peace of Mind™, we now offer a truly complete weight distribution system called “TRUE TOW™”. Our Weigh Safe True Tow™ Weight Distribution Hitch includes “True Tow™ Technology”.

FEATURES

  • BUILT-IN SCALE
  • LIVE ADJUSTMENT SYSTEM
  • EASY HEIGHT ADJUSTMENT
  • EXTENDED SLEEK DESIGN
  • ANTI-SWAY HITCH

SPECIFICATIONS

Features
6″ Drop Hitch, 8″ Drop Hitch
Trailer Compatibility
ONLY compatible with 3″, 4″, 5″ and 6″ tall trailer frames up to 2.5″ thick

*Not compatible with trailers that have a frame larger than 5″ and have the coupler mounted to the bottom of the frame.
(Typically found on Jayco Trailers)

*Not Compatible with Surge Brakes
Due to the length of the hitch some trailers may require their chains and breakaway cable to be extended and or remounted.

Built-in Scale
Shaft
2″ or 2.5″
Max GTW
15,000 (2″ shaft), 20,000 lbs (2.5” shaft)
Max Tongue
1,500 lbs (2″ Shaft), 2,000 lbs (2.5″ Shafts)
Weight & Dimensions
133.5 lbs – 146 lbs; 37 x 12.5 x 8.25 in
V5 & J684 certified
Drop Hitch Adjustment
1” increments
Ball material
Stainless steel
Pin

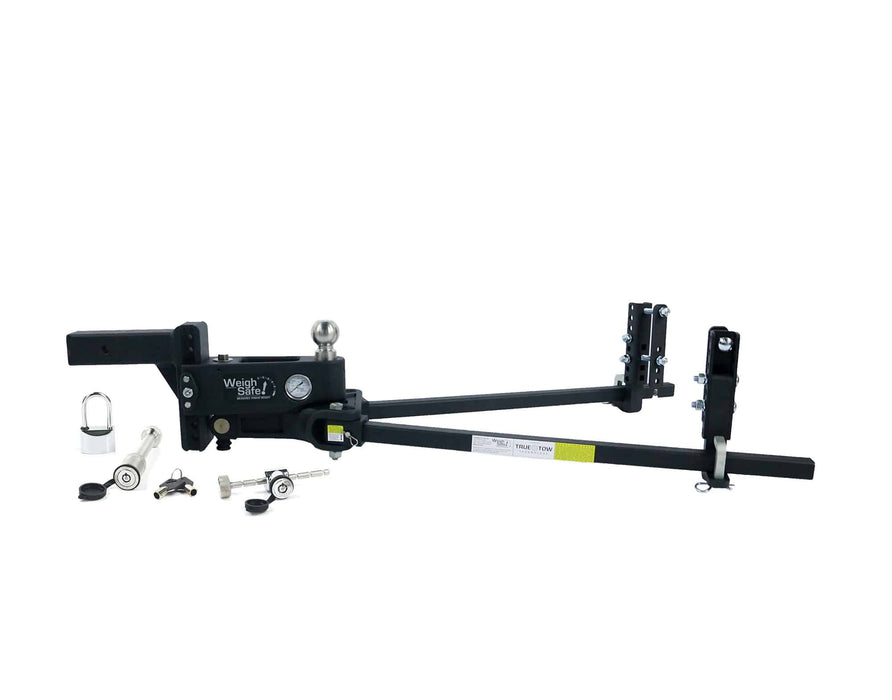

Dual pin key lock assembly included
Rise
All hitches may be used in rise position *Gain 1 inch (e.g. 6” drops are 7” rises)
Total Height
Add 3 inches (*e.g. 6” drops measure 10” from the top of the receiver to the hitch base)
Hitch Pin Hole
5/8″ Diameter
Saves Property
Saves Time
Maintenance Stainless steel tow balls can still show surface rust, particularly after use in a coupler and exposure to water/salt. This rust will not spread past the surface of the towball and it will not affect the performance of the towball. The rust can be cleaned up and removed with a scotch brite/brillo pad.
Safety Chains Due to the extended sleek design of the True Tow Weight Distribution Hitch in some cases it may be necessary to extend your safety chains and electrical wiring. Please work with your trailer manufacturer on determining the best way to proceed.
